Capturing your heart rate from your wearable watch or patch was slick. But fitness enthusiasts are raising the bar and expecting manufacturers to step up to the bar with them.
As wearables continue to move into consumer health applications, end users are expecting additional metrics such as heart rate variability, recovery rate — basically as much detail as they can get. But, to-date, driving down power and improving sensitivity all while shrinking form factors have remained formidable challenges.
Silicon Labs recently introduced a family of optical biometric sensors that specifically address those power and sensitivity challenges, while adding the additional metrics consumers are demanding. The Si117x sensor modules provide advanced heart rate monitoring (HRM) along with electrocardiogram (ECG) capabilities for a wide range of wearable fitness and wellness products. The modules combine ultra-low power, high sensitivity and high integration, making them well-suited for smart watches and wrist-based, patch-type and other wearables requiring long battery life and enhanced HRM accuracy.
“These sensor modules showcase our increased broad sensor portfolio that is complementary to our IoT play for consumer health devices and wearables,” says Sid Sundar, Senior Manager for Sensors Products at Silicon Labs. “It speaks to our vision of how biometrics or physiological sensing is going to evolve over the next few years ago.”
The modules combine ECG measurements with optical HR measurements, allowing developers to unlock new potential biometrics for wearables. The ECG waveform is the gold standard for cardiac measurements, and the Si117x sensors bring this capability to wrist-based wearables in a cost-effective, power-efficient manner. By making measurements in the same device and at the same time, the Si117x sensors allow developers to combine biometrics with optical photoplethysmogram (PPG) measurements to derive valuable physiological parameters.
Typically abbreviated PPG, photoplethysmogram is an optically obtained plethysmogram, a volumetric measurement of an organ. A PPG is often obtained by using a pulse oximeter which looks at the intensity of reflected heart rate. To do that, you shine a constant light source and look at the reflected light which will detail a small variation as blood is flowing through. That variation is at the same frequency as a heart rate. About 99 percent of the reflected signal you get back is the constant signal but it is a small signal requring a great deal of sophi
sticated digital processing — and a key problem when applied to a wearable device is to solve the motion artifacts. As device moves around your wrist, it causes changes that can create large variations making it more difficult to extract a signal. Accuracy is also compromised when you take into effect different temperature and skin tones.
Si117x sensors provide enhanced HRM accuracy for a better end user experience. The sensors offer fast sampling speeds, a high signal-to-noise ratio (SNR >100 dB), and the ability to cancel out ambient noise and erroneous data, resulting in high-quality signals that make it easier to track heart rates despite challenging physiologies, varying skin tones and the presence of tattoos. A more accurate view of the HR waveform enables biometrics beyond traditional HRM, including heart rate variability (HRV), stress analysis and pulse volume. By combining ECG with optical information, Silicon Labs’ sensor modules can extract measurements such as recovery rate that are normally difficult to pull out separately.
The Si117x module’s high level of integration address the additional challenge of optical design. Companies desiging wearables products may have plenty of EEs but few optical specialists. In addition to complexity of optical integration there is also complexity in term of software integration.
To simplify development and speed time to market, Silicon Labs offers a complete, end-to-end sensing solution featuring the Si117x sensor module, HRM algorithm, Wireless Gecko SoCs for Bluetooth connectivity, and an easy-to-use, wrist-based development kit with sample code and example projects.
Addressing the market need for power efficiency, the Si117x sensors consume less than 50 µA (sensor and LED combined) while performing continuous HRM. A built-in buffer and accelerometer synchronization capabilities save even more system-level power. The sensors’ industry-leading power efficiency enables developers to use smaller batteries in wearable designs without significantly impacting the device’s battery life during continuous monitoring.
The module’s high level of integration simplifies wearable design and makes it easier to synchronize multiple sensor measurements without adding significant system cost or board area. Each module supports up to four distinct LEDs (all of which can be driven simultaneously), and its four LED drivers are independently programmable (from 1.7 to 310 mA). Additional built-in features include a photodetector, 24-bit ADC with >100 dB dynamic range, I2C and SPI digital interfaces, programmable event interrupt engine, synchronization engine, host communications processor and inputs for two external photodiodes.
“As the market for health and fitness wearables continues to grow, developers want complete biometric sensing solutions that work flawlessly without the complexities of integration,” said Tom Pannell, Senior Marketing Director of IoT products at Silicon Labs. “Silicon Labs is the only supplier to provide a total HRM sensing solution in-house, from the sensor module and algorithm to the wireless SoC capable of transmitting measurements over Bluetooth LE. Our example HRM projects take care of interfacing between these components, and having a single point of contact greatly simplifies customer support and debugging.”
The Si117x sensors support Silicon Labs’ proprietary, motion-compensated HRM algorithm optimized for wrist-based sensing and to run on EFM32 Gecko MCUs and EFR32 Wireless Gecko SoCs supporting Bluetooth Low Energy (LE). This unparalleled integration enables system-level power and performance optimization and reduces time to market for developers seeking to add HRM capabilities to their wearable designs.

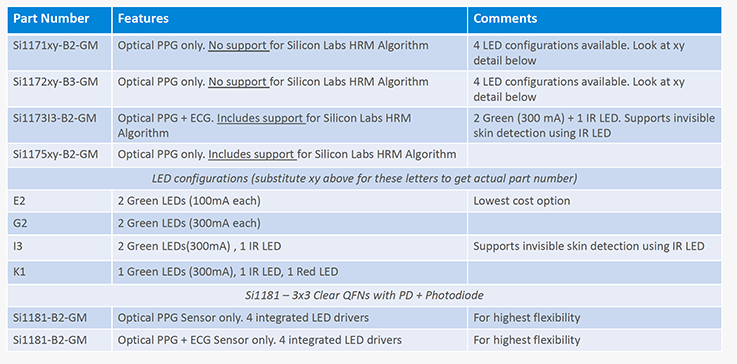

Samples and volume quantities of the Si117x sensors are available in a 3.7 mm x 7 mm 28-pin LGA module. Silicon Labs also offers Si118x optical biometric sensors with an integrated photodiode in a clear 3 mm x 3 mm QFN package. To simplify development and performance evaluation, Silicon Labs provides a variety of wrist-based ECG and PPG development kits, a Bluetooth-enabled HRM evaluation watch, and an Android-based Triple Heart Application that captures data from multiple devices. Contact your local Silicon Labs sales representative for sensor and kit pricing. For additional information and to order sensor samples, visit www.silabs.com/hrm.
