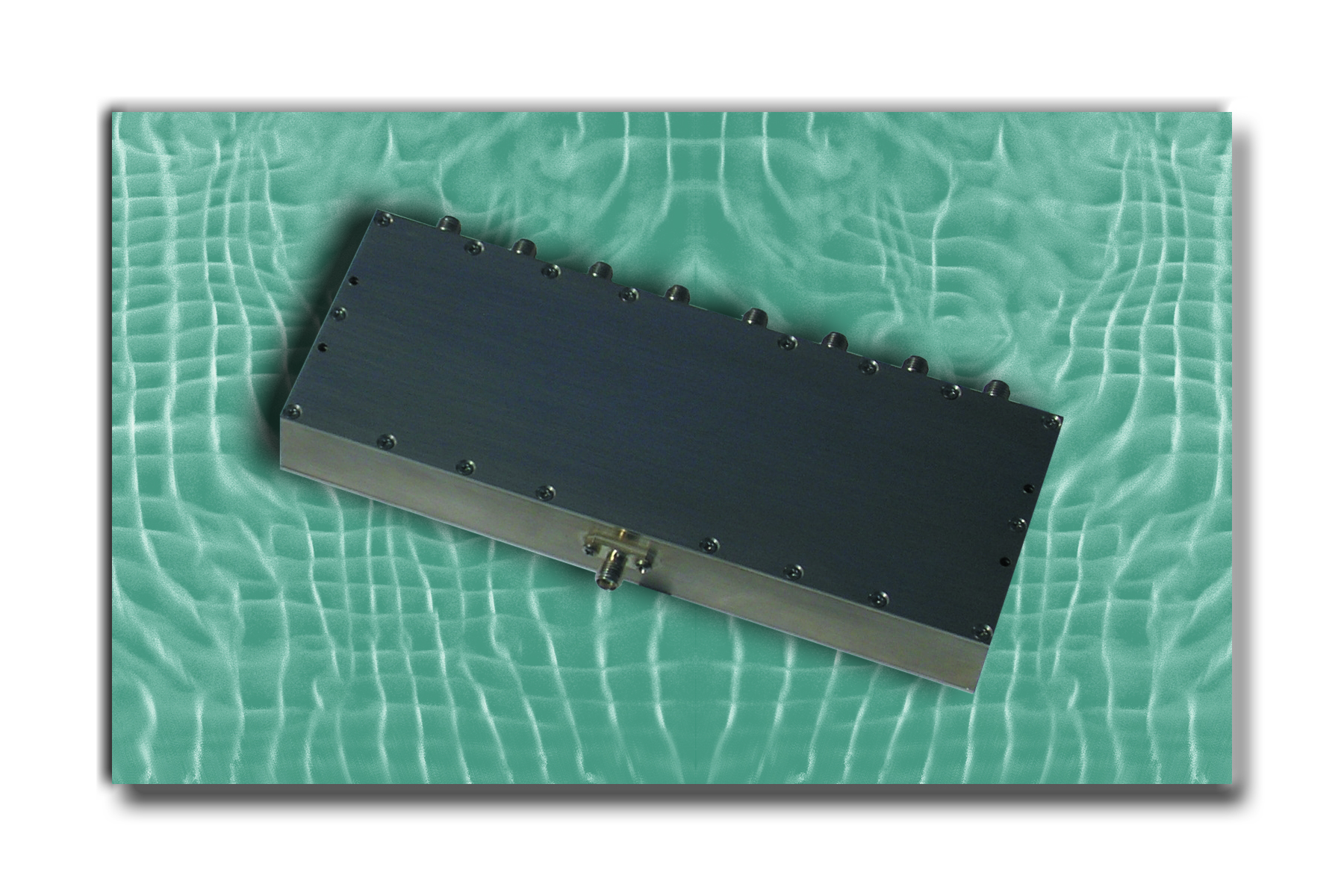

BroadWave Technologies recently released its Model 151-285-008, a resistive eight-way power divider designed for military antenna sharing applications. This unit is also appropriate for DAS environments as well as test and measurement applications.
Key Features
- 50 Ohm units frequency range is DC-6 GHz
- Insertion loss above theoretical loss is + 1.0 dB nominal DC-5 GHz and + 1.6 dB nominal 5-6 GHz
- Input power is 10 watts average with an operating temperature of -20 degrees C to +100 degrees C
- Amplitude tracking is + 0.5 dB maximum and VSWR is 1.50:1 maximum
- RF connectors are SMA female
