Passive Plus, Inc. (PPI) now offers extended voltage for the EIA Low ESR 0201N and 0402N. These capacitors now have extended voltage of 50V and 250V respectively, Case sizes are 100 percent RoHS, and exhibit Low ESR/ESL, Low Noise, High Self-Resonance, as well as ultra-stable performance over temperature.

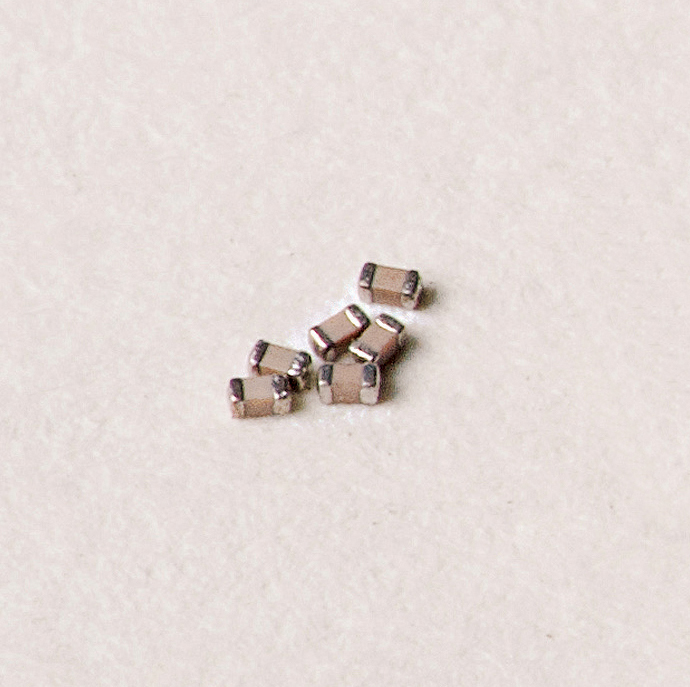

0201N series
- Size: .020” x.010”
- Value Range: 0.1pF – 100pF
- WVDC: 25V
- Extended WVDC: 50V
- Q = 2,000 min. @ 1 MHZ
- TC: 0 +/- 30 PPM/°C (-55°C – +175°C)
0402N series
- Size: .040” x .020”
- Value Range: 0.1pF – 33pF
- WVDC: 50V
- Extended WVDC: 250V
- Q = 2,000 min. @ 1 MHZ
- TC: 0 +/- 30 PPM/°C (-55°C – +175°C)
Also included in this series is the 0603N.
0603N series
- Size: .060” x .030”
- Value Range: 0.1pF – 100pF
- WVDC: 250V
- Q = 2,000 min. @ 1 MHZ
- TC: 0 +/- 30 PPM/°C (-55°C – +175°C)
