Antenova Ltd is showing a brand new pair of high performing 4G/LTE antennas which are suitable for PCBs as small as 60 mm, at the consumer electronics show CES. The two antennas can also be used in 3G and MIMO applications.
The two antennas are similar—the difference being that Inversa is built for the USA market while Integra is for European and Asian markets.
Both antennas are available in left and right versions to provide more options for placement on the PCB, and can be used singly or in pairs for MIMO. Both use beam steering to ensure good isolation and cross correlation, and achieve high performance.
Inversa, part numbers SR4L034-L /SR4L034-R, measures 28.0 x 8.0 x 3.3 mm and covers the USA bands 698-798 MHz, 824-960 MHz, 1710-2170 MHz, 2300-2400 MHz and 2500-2690 MHz.

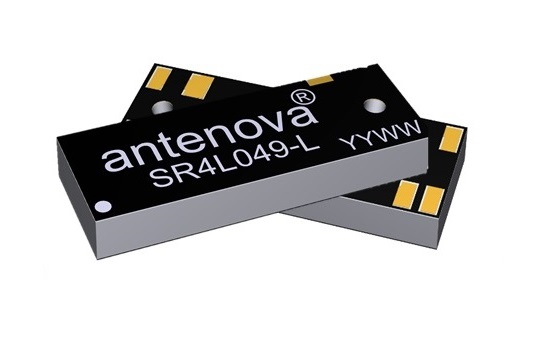

Integra, part numbers SR4L049-L/SR4L049-R measures 23.0 x 8.0 x 3.3 mm and covers the bands 791-960 MHz, 1710-2170 MHz, 2300-2400 MHz and 2500-2600 MHz, used in Europe and Asia.
