Cooling fans designed for environments more harsh than an office building may carry a special IP rating that designates resistance to different levels of dust and moisture. Here are a few basics when it comes to the differences between fans made to different IP ratings.

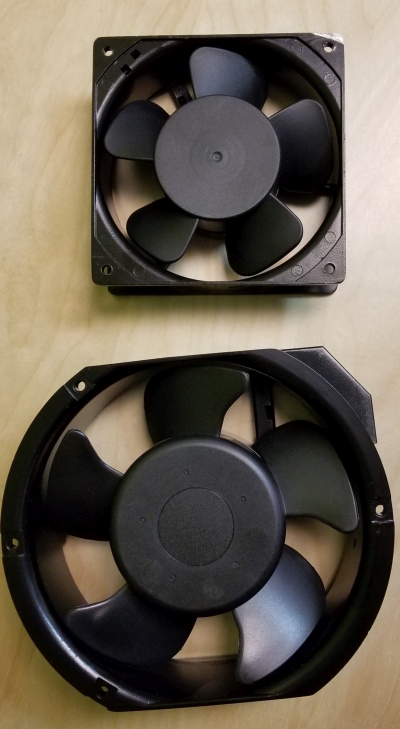

A plastic ac fan, top, and a similar all-metal version, both from Orion. The metal fan carries an IP55 rating, but not specifically because it has metal parts.
The IP in IP rating stands for ingress protection. IP ratings have two digits. The first digit signifies the level of protection against solids (i.e. dust) while the second digit signifies level of protection against liquids. The liquid spelled out in the rating is water. Levels of liquid protection basically amount to the degree to which the device withstands either full immersion in water or a water spray. Different IP ratings cover whether the water exposure is at low or high pressure, and at what angle the spray is applied. And there is one IP rating that covers resistance to steam-jet cleaning.
The seam between the rotor and stator is visible on these two IP55 fans from Orion. The seam is the main protection against ingress of dust and moisture.
What might be the most common IP ratings for fans is the IP54 and IP55 ratings. These basically say the fan stands up to moisture that isn’t applied aggressively, i.e. from a high-pressure jet. The main mechanism that protects the motor electronics from dust and moisture in IP54 and IP55 fans is the seam between the stator and rotor. Manufacturers keep the gap relatively tight, often with a significant amount of distance from the gap to motor conductors, to discourage invasion of motor parts by dust and moisture.
An ordinary ac fan motor from Orion with its squirrel-cage rotor and windings exposed. It is quite likely the stator coils would be encapsulated if this fan were rated for IP56 or higher.
To realize IP ratings more stringent than IP55, fan makers generally resort to encapsulating the motor internals. This is relatively easy to do in ac fan motors which are generally squirrel cage designs. Their chief energized electrical component consists of the stator windings. Encapsulation of EC fan motors is a bit more involved because it entails putting water-proof coatings on circuit board components. Nevertheless, it is still quite manageable.
It is also interesting to note that both plastic and metal fans can be had with stringent IP ratings signifying resistance to immersion and various kinds of high-pressure washing. Thus metal fan components by themselves aren’t a requirement for upper levels of IP ratings. The usual rationale for specifying a metal fan is for uses outdoors where there is a possibility of the fan being hit by debris that is a lot bigger than dust particles.
