MicroPower Direct‘s MR50SRW series is a family of single output 50W converters packaged in a compact 2.28 x 1.45 inch case. They are designed to provide the wide input range, robust filtering, rugged packaging and high reliability required for railway/transit applications.

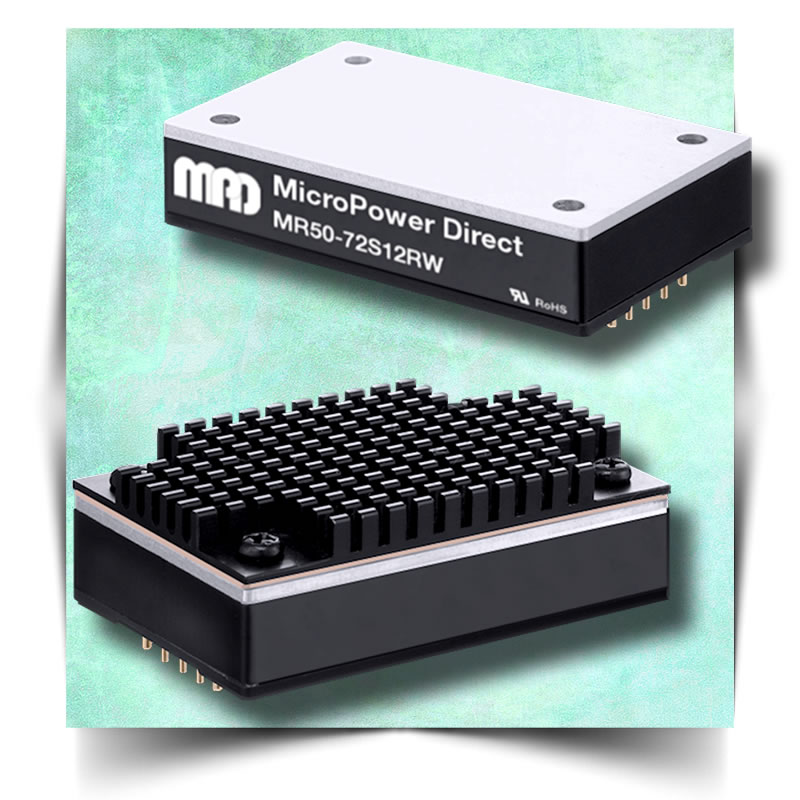

The MR50SRW family is packaged in a compact, industry standard 2.28 x 1.45 x 0.50 inch case. Operation is specified for the wide industrial temperature range of -40°C to +75°C (an optional heat sink is available to extend the full power range of the unit). The MR50SRW series is has been designed for use in rail and transit applications. They provide the high reliability, compact size, wide temperature operation and compliance to standards required for use in rail equipment.
Key Features
- Eight standard models operate from wide 43 VDC to 101 VDC (72 VDC nom) or 66 VDC to 160 VDC (110 VDC nom) inputs, providing tightly regulated single outputs of 5, 12, 15 or 24 VDC
- Line/load regulation less than 1.0 percent
- I/O isolation of 3,000 VAC rms
- Remote control input and efficiency as high as 92 percent
- All models are protected for output short circuit faults and output over current faults
- MTBF (per MIL HDBK 217F) is greater than 143 khours
