A few basic parameters can be useful for selecting power supplies that must work dependably in specific application scenarios.
Alex Karapetian Acopian Power Supplies
Electronic devices require a reliable source that can supply power at all times. But power supplies are available in a wide range of voltage and current ratings. Engineers tasked with selecting an appropriate power supply must resolve numerous questions to determine which supply suits an application. A good place to start with this analysis is to look at two main power supply design topologies: switching and linear regulated.
One advantage of switch-regulated supplies is that they can fit in low-profile packages. Examples include these 720-W-output supplies housed in WL7 and WL9 cases.
Switching power supplies regulate the output voltage using a high-frequency switching technique that employs pulse-width modulation and feedback. Power passes from the input to the output through a switch which is actuated until the desired voltage is reached. When the output voltage reaches the predetermined value, the switch element is turned off, and no power is consumed. Generally speaking, switching power supplies are smaller, lighter, and more efficient than linear power supplies. For example, a 250-W linear power supply would take up a volume of 600 in3 and weigh 26 lb while a comparable ac-dc switching supply would require 60 in3 and weigh 2 lb.
Switching supplies can either step-up or step-down the input voltage to get the desired output voltage. Applications where a switching power supply may be preferable include those where small size, low weight, and high energy efficiency are important. They include high power/high current uses, portable equipment, control systems, dc motors, aviation and marine applications, network equipment, electrolysis and waste treatment operations.
Linear power supplies are typically specified for uses where low power line noise and low EMI are both priorities. Examples include the Gold Box Infinity line which put out up to 450 W and have typical maximum ripple components of 0.75 mV peak-to-peak.
Linear-regulated power supplies earned their name from use of linear (non-switching) techniques to regulate the supply voltage output. A linear-regulated power supply generates an output voltage by first converting the high-voltage ac into lower-voltage ac via a transformer, then converting the transformer output into an unregulated dc voltage via a rectifier and capacitor filters. An error amplifier compares the reference to the output and the resulting signal is used to ensure the output remains on the required voltage. The closed-loop design ensures the supply output stays at the nominal voltage despite changes in supply line or load values.
Linear power supplies typically step-down an input voltage to produce a lower output voltage. Though it is larger, heavier, and not as efficient as a comparable switching supply, the linear unit has beneficial attributes that the switcher supply cannot match. For example, the linear supply has no discrete time clocking or switching action. Consequently, the output is virtually noise and ripple free. Typical applications of linear regulated power supplies include telecommunications equipment, medical equipment, laboratory test equipment, low-noise amplifiers, advanced signal processing and data acquisition systems (sensors, multiplexers, A/D converters and sample and hold circuits), and precision measurement devices.
Systems where reliability is essential and a sudden loss of power would lead to disaster need two bulletproof power sources.

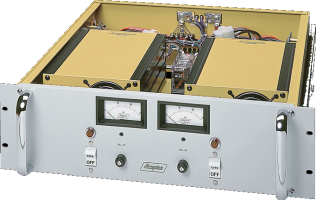

An example of a redundant power supply package. The Acopian R24W9 is a rack-mountable supply that puts a nominal 24 V and 24 A. It is a switching supply, though redundant supplies employing linear-regulation topologies are also available. Typical optional features for such redundant supplies include alarms when an output is below normal, separate ammeters for each output, and separate alarm contacts for each supply.
One way to keep dc power going no matter what is to use a redundant power supply system. In a redundant arrangement, more than one power supply feeds a single voltage rail. If one power supply fails, the other continues to entirely power that rail. Furthermore, a separate feed to each power supply input helps stem failure on the primary side.
Redundant power entails more than simply paralleling the outputs of multiple power supplies. (In general, power supplies may not be built to work in parallel with other supplies. Simple parallel power connections can sometimes damage the paralleled supplies.) Instead, redundant power packages contain two identical power supplies with their outputs interconnected through a diode switching arrangement. The switching arrangement will detect any fault condition, isolate it from the system output, and pass only the output of the good supply with no interruption of output power during the transition. Redundant power systems come with various features including over- and undervoltage, surge protection, isolation diodes, alarms and remote voltage sensing.
DIN rail mounting kits are available for many power supplies. An example is the EB35DIN mounting kit which consists of an aluminum plate with two DIN clips and four screws for attaching the plate to the bottom of a supply or dc-dc converter. The kit lets the supply snap onto a 35-mm ‘top hat’ type of DIN rail.
Power supplies that can be mounted on a DIN rail are frequently utilized in control panels and electrical cabinets for industrial control, building control, instrumentation and automation applications. Control systems typically have functional modules clipped to DIN rails for operational flexibility and easy access. These DIN-rail power supplies provide industry standard 12, 24 or 48 Vdc. Application requirements often dictate that these supplies withstand harsh environmental conditions.
Many power supply manufacturers provide simple DIN rail mounting kits for many of their power supplies. For instance the EB35DIN mounting kit from Acopian includes an aluminum plate with two DIN clips attached to it. Four screws attach the plate to the bottom of any mini-encapsulated power supply or mini dc-dc converter with screw terminals. The power supply can then be snapped onto a 35-mm ‘top hat’ type DIN rail.
Low noise supplies
Electrical devices switching on and off create electrical noise having a spectrum consisting of a fundamental at the switching frequency as well as numerous harmonics. Another source of conducted electromagnetic interference (EMI) is ripple in the converter output. Ripple can be a factor because rectification and filtering of a switching supply’s output causes an ac component that rides the dc output. Typical ripple noise levels are on the order of hundreds of microvolts to tens of millivolts. This level is unacceptable in medical equipment, low-noise amplifiers, signal processing, data acquisition, automatic test equipment and laboratory test equipment.
Linear regulated power supplies have little ripple and little output noise, making them suitable for laboratory, medical and instrumentation applications. Equipment that generates and manages X-ray data, requiring reliable, consistent and clean power is an example. In one case, a linear power supply handled a dark room environment for developing X-ray imagery. All LED indicators and digital meters on the supply could be switched off while the power system was in use; toggle switches on the front panel provided individual control of LED indicators and digital meter backlighting.
For the defense industry, components must withstand the extreme environmental conditions that the military faces. In particular, power supply systems must be designed and qualified to strict manufacturing, environmental and operational Military Specifications (MIL-SPEC).
MIL-STD-704 (Aircraft Electrical Power Characteristics) for instance, is a U.S. military standard that defines a standard power interface between a military aircraft and its equipment and carriage stores. The standard covers such topics as voltage, frequency, phase, power factor, ripple, maximum current, electrical noise and abnormal conditions for both ac and dc systems. A point to note is the requirements and specifications for defense applications are unique. Such requirements may prevent standard switching power supplies from meeting military design needs.
Online tools that power supply manufacturers provide can speed the supply selection process. An example is the online Acopian custom system builder. Engineers can use this tool to easily custom-design dc-dc and ac-dc power supplies with just a few clicks, selecting options that range from the number of outputs to the topology of the supply circuit.
