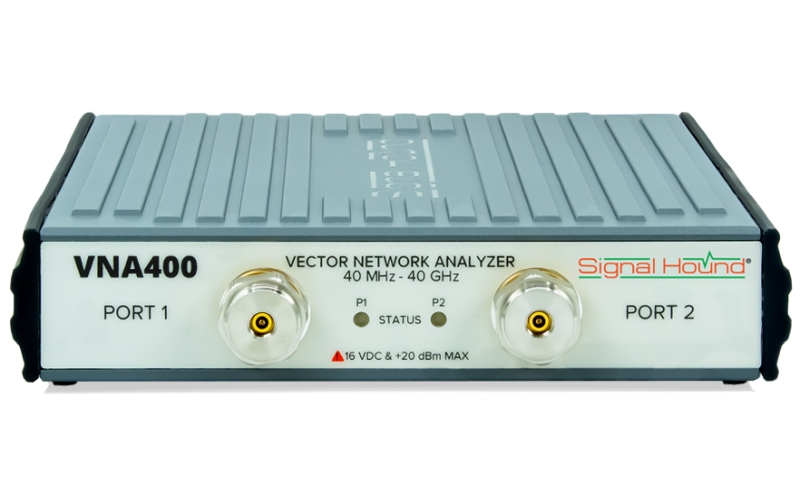

RF components such as connectors, cables, antennas, and PCB traces need characterizing so you know how they will perform. That’s where a vector network analyzer (VNA) can help. Signal Hound, well known for its USB spectrum analyzers, has introduced the VNA400, a 40 GHz VNA that connects to and gets power from its single USB-C port. The two-port VNA400 lets you send a signal to your device under test (DUT) and measure its response, producing S-parameters.

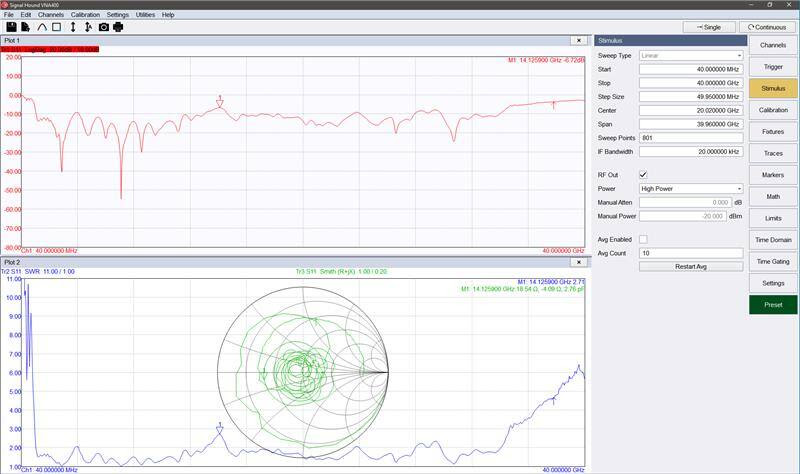

Operating from 40 MHz to 40 GHz, the VNA400 includes software that you can use to operate the instrument from a Windows-based PC. For custom applications, you can use SCPI commands to configure the instrument, run tests, and upload the results.
Applications include:
- Cable and connector testing
- Antenna testing
- PCB trace testing
- Return loss measurements
- VSWR measurements
- Insertion loss measurements
- Impedance measurements
- Group-delay measurements
Dynamic Range:
- -132 dB (100 MHz to 2 GHz)
- -125 dB (2 GHz to 8 GHz
- -117 dB (10 GHz to 32 GHz)
- -110 dB (32 GHz to 40 GHz)
The VNA400 is priced at $25,995 with a two-year warranty.
