*Orthogonal frequency-division multiplexing has become the standard modulation format for 5G New Radio. Lean how OFDM works and how it’s used.*

Orthogonal Frequency Division Multiplexing (OFDM) is an efficient modulation format used in modern wireless communication systems including 5G. OFDM combines the benefits of Quadrature Amplitude Modulation (QAM) and Frequency Division Multiplexing (FDM) to produce a high-data-rate communication system. QAM refers to a variety of specific modulation types: BPSK (Binary Phase Shift Keying), QPSK (Quadrature Phase Shift Keying), 16QAM (16-state QAM), 64QAM (64-state QAM), etc. Refer to Ref 1 and 2 for more information on QAM.

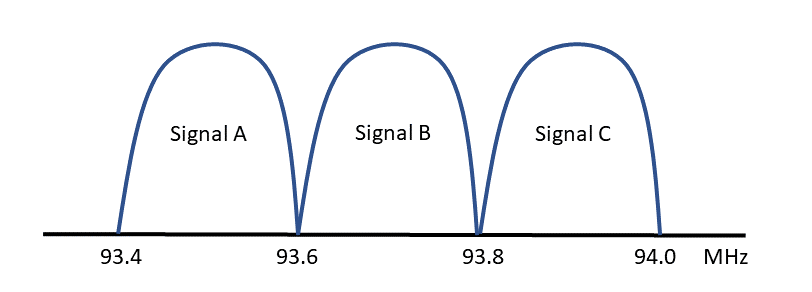

FDM is simply the idea that multiple communication channels can coexist by designating a slice of frequency spectrum for each channel. A common example of this is FM broadcast radio: the overall (US) frequency allocation is 87.8 MHz to 108 MHz, divided into channels that are 0.2 MHz wide (**Figure 1**). FDM frequency allocations must not overlap and often have guard bands between the channels to minimize adjacent channel interference.

**OFDM**

The basic concept of OFDM was first proposed by R. W. Chang [see Ref 3], recognizing that bandlimited orthogonal signals can be combined with *significant overlap* while avoiding interchannel interference. Using OFDM, we can create an array of subcarriers that all work together to transmit information over a range of frequencies.

These subcarriers must be orthogonal functions. The precise mathematical definition for orthogonality between two functions is that the integral of their product over the designated time interval is zero. More loosely, we can consider orthogonal functions to be statistically unrelated.

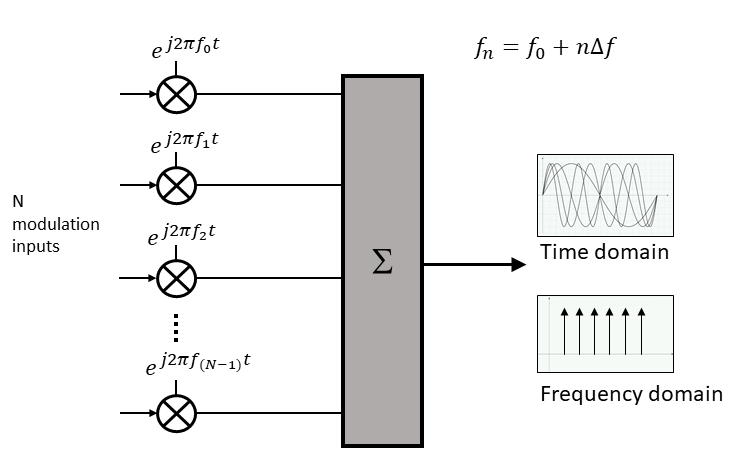

**Figure 2** shows how N equally-spaced subcarriers can be combined to form an array of parallel signals. Each of the subcarriers is modulated using QAM. These modulated subcarriers can be used to support independent baseband signals but more typically they are combined to provide the maximum data throughput for one stream of data.

We can represent these subcarriers mathematically, using the complex form consistent with the use of QAM.

The equations above are continuous functions and OFDM systems have been implemented in analog form. However, modern systems are almost all digital, taking advantage of the latest semiconductor process nodes and digital signal processing.

Modern OFDM systems use subcarriers that exist in discrete (sampled) form with a sample rate of:

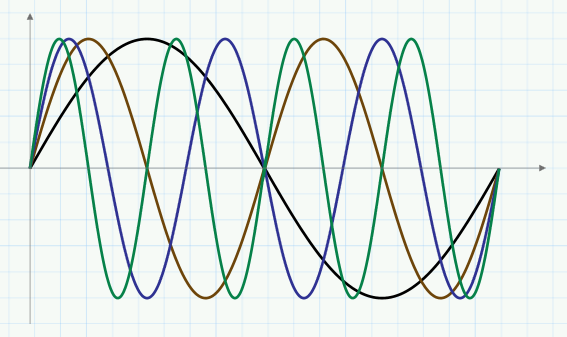

For simplicity, **Figure 3** shows just four unmodulated subcarriers in the time domain. The black trace is *f _{0} *and the other traces are higher frequency subcarriers, spaced at multiples of

*∆f*.

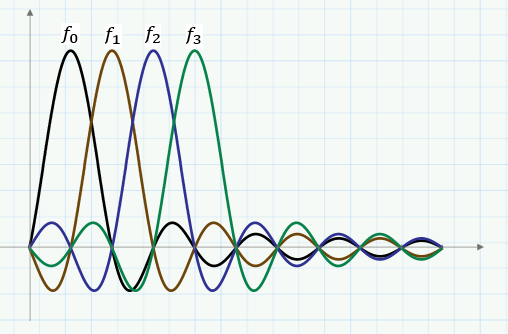

**Figure 4** plots these same subcarriers in the frequency domain, shown with some modulation bandwidth to indicate the overlap between subcarriers. The subcarriers are orthogonal to each other and will exhibit minimal interference to the other subcarriers, resulting in efficient use of bandwidth. Note that the amplitude of each subcarrier crosses zero at the center of other subcarriers, minimizing adjacent subcarrier impact.

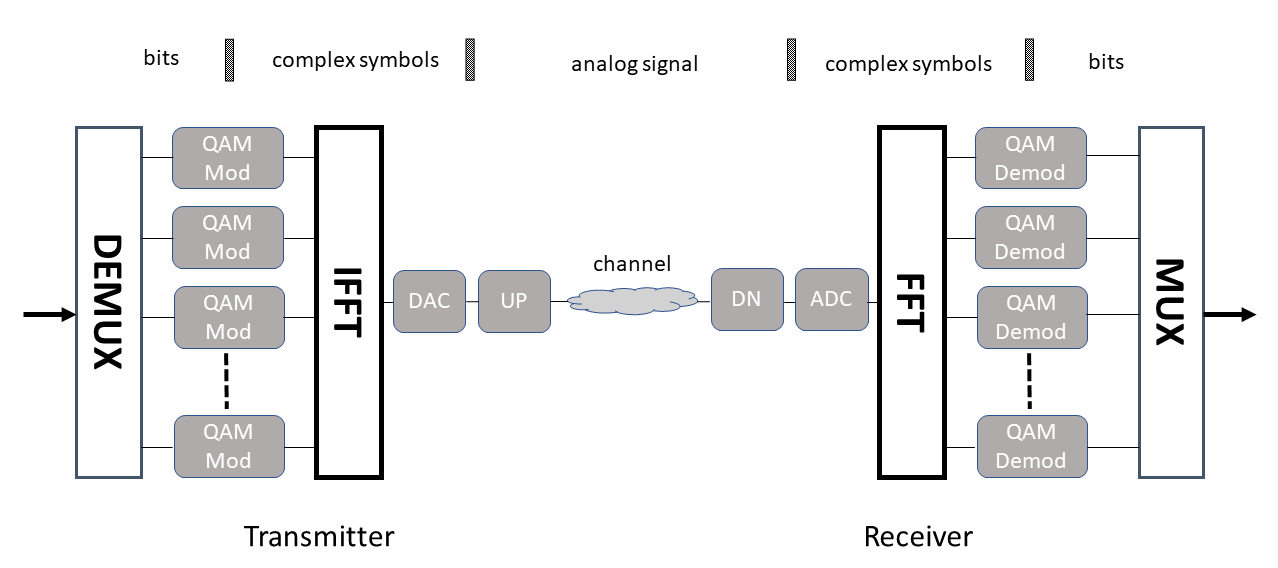

**Figure 5** shows a basic block diagram of a complete end-to-end OFDM system consisting of a transmitter and receiver. The bit stream enters the system on the left of the diagram. As typical, this single bit stream is demultiplexed (DEMUX) into smaller bit streams that are fed to the individual QAM modulators for each of the N subcarriers.

A key enabler for OFDM is the use of the Inverse Fast Fourier Transform (IFFT) to efficiently create the time domain waveform from the array of modulated subcarriers. The resulting OFDM signal is in digital form which drives the Digital-to-Analog Converter (DAC) which converts it to an analog signal. This baseband signal is usually up-converted (UP) to a higher frequency (and perhaps amplified) before being transmitted via the over-the-air channel.

At the receiver, the process is reversed. An analog downconverter (DN) shifts the OFDM signal back to baseband. The Analog-to-Digital Converter (ADC) converts the signal to digital form and passes it on to the FFT block. The FFT block transforms the time domain signal back to the array of subcarriers carrying QAM modulation, in the frequency domain. The QAM demodulators reproduce the bit stream from each subcarrier, which is then multiplexed (MUX) to recreate the original single data stream.

The big ideas here are 1) combining many QAM subcarriers to create a wide-bandwidth system and 2) the use of the FFT and IFFT to efficiently transform those subcarriers into a single wireless signal. A range of QAM modulation can be used, starting with BPSK (one bit per symbol) up to 256QAM (8 bits per symbol). Combining this with the use of many subcarriers (perhaps 4096) results in very high data rates.

**Time Plus Frequency**

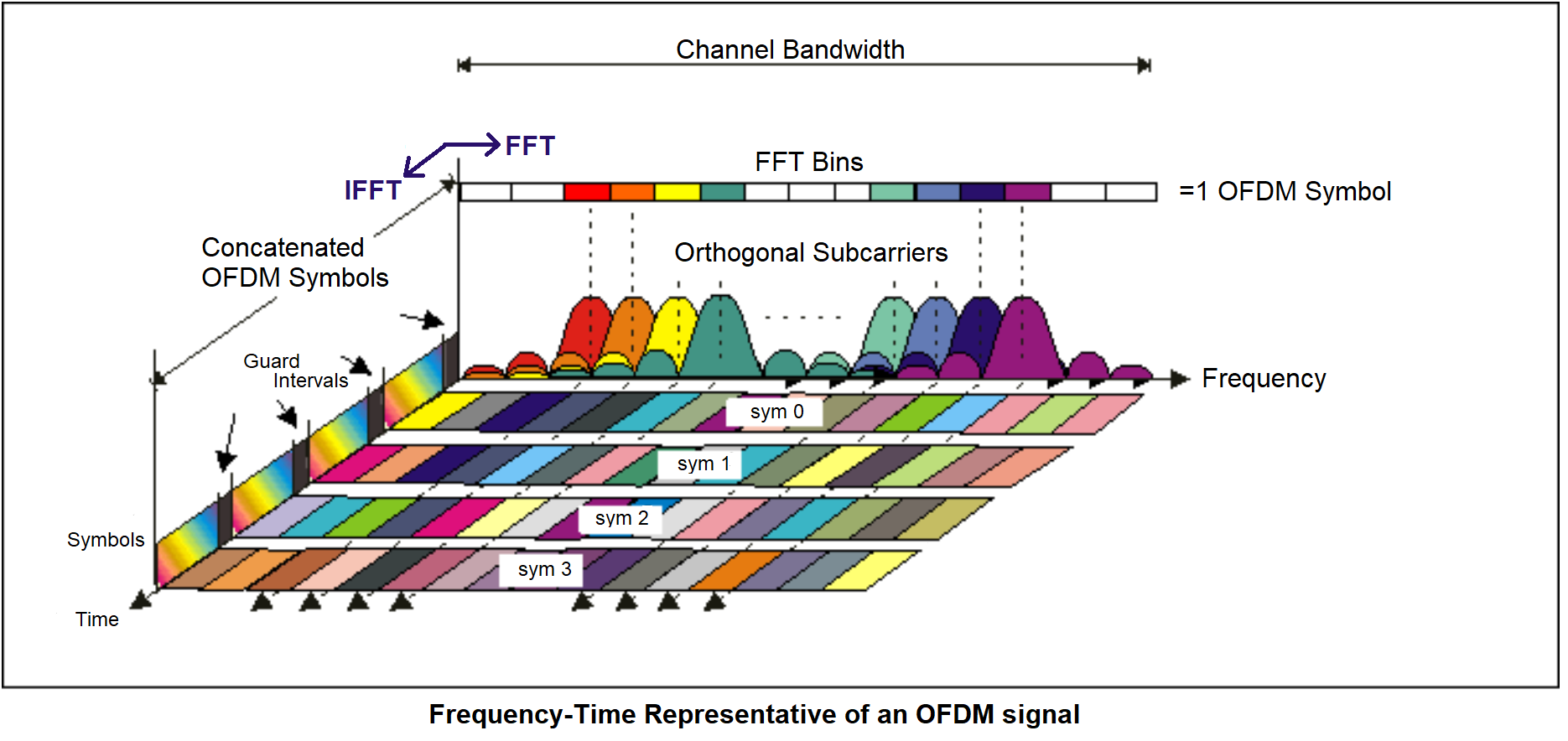

**Figure 6** shows the time plus frequency domain view of an OFDM signal. The horizontal axis is frequency and the vertical axis is amplitude. The third axis, coming out of the page, is time, allowing us to see the OFDM signal progressing from the back of the graph to the front. Each symbol shown in the figure is one set of OFDM subcarriers transmitted down the channel.

Note the inclusion of a *guard interval* to provide some time separation between symbols. This is a simple method to prevent multipath propagation in the channel from causing interference between symbols. A more advanced method inserts a *Cyclic Prefix *(CP) into the guard interval, resulting in a form of OFDM called CP-OFDM. The CP is created by copying the last part of the IFFT record and appending it to the beginning of the record, acting as the guard interval.

**Uses of OFDM**

The wireless LAN standard, IEEE 802.11a, was one of the first standards to employ OFDM. This standard uses 64 subcarriers spaced by 312 kHz, which can be modulated with several different QAM variations: Binary Phase Shift Keying (BPSK), Quadrature Phase Shift Keying (QPSK), 16QAM or 64QAM.

Mobile wireless systems employ OFDM to achieve high bandwidth channels. Existing 4G (LTE) mobile wireless uses OFDM for the downlink (base station to mobile device), with a fixed subcarrier spacing of 15 kHz. The modulation on the subcarriers can be QPSK, 16QAM or 64QAM.

The 5G New Radio (NR) standard uses OFDM on both the uplink and downlink. The NR specification is designed with a high degree of flexibility to cover a diverse set of applications. The carrier spacing is flexible (15 kHz, 30 kHz, 60 kHz, 120 kHz, 240 kHz, 480 kHz) with up to 3300 subcarriers. The subcarrier modulation can be QPSK, 16QAM, 64QAM or 256QAM. For more information on the 5G physical layer, see Ref 7.

**References**

- “Digital modulation basics, part 1”, Bob Witte, Feb. 20, 2020, https://www.5gtechnologyworld.com/digital-modulation-basics-part-1/.
- “Digital modulation basics, part 2: QAM and EVM”, Bob Witte, Mar. 4, 2020, https://www.5gtechnologyworld.com/digital-modulation-basics-part-2-qam-and-evm/, .
- “The History of Orthogonal Frequency-Division Multiplexing”, Stephen B. Weinstein, IEEE Communications Magazine, November 2009 https://ieeexplore.ieee.org/document/5307460
- “Concepts of Orthogonal Frequency Division Multiplexing (OFDM) and 802.11 WLAN”, Keysight Technologies web page, https://rfmw.em.keysight.com/wireless/helpfiles/89600B/WebHelp/Subsystems/wlan-ofdm/Content/ofdm_basicprinciplesoverview.htm
- “Digital Modulation in Communications Systems- An Introduction,” Application Note, Publication Number, Keysight Technologies, 2014. https://literature.cdn.keysight.com/litweb/pdf/5965-7160E.pdf
- “Digital Modulation in Communications Systems- An Introduction,” Application Note, Publication Number, Keysight Technologies, 2014. https://literature.cdn.keysight.com/litweb/pdf/5965-7160E.pdf
- “Understanding the 5G NR Physical Layer,” Presentation, Javier Campos, Keysight Technologies, November 2017, https://www.keysight.com/upload/cmc_upload/All/Understanding_the_5G_NR_Physical_Layer.pdf
