*This multipart series will review the discrete Fourier Transform and describe how to avoid common problems when transitioning from the time to frequency domain.*

A recent post on phase noise discussed expressing a function of time as a function of frequency. The Fourier Transform is the well-known road from the time domain to the frequency domain:

**My data is in the form of discrete data points instead of a continuous integrable function.
**That’s right. In an engineering environment, you will undoubtedly have discrete data sets that you obtained using an oscilloscope or data-acquisition system. If you have

*N*discrete samples representing

*f(n)*, then you can use the Discrete Fourier Transform (DFT) to return

*N*data points representing

*F(k)*:

In this multi-part series, we will transform some sample data, examine some apparent aberrations in our results, and explore the role of spectral leakage in causing them. Finally, we will look at using windowing functions to improve accuracy.

Let’s begin by manually transforming a simple data set to see how the DFT works. First, from Euler’s formula, we can rewrite the DFT equation as follows:

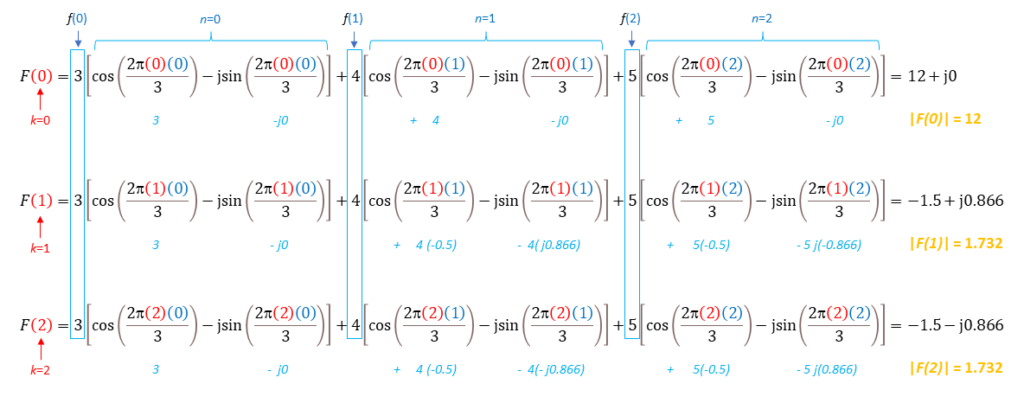

**Figure 1** shows this calculation carried out for the data set *f(n)=*3, 4, 5. It highlights values for *n* in blue and *k* in red. Partial results are listed in light blue below each equation. The colors help illustrate that every calculation of *F(k)* involves every value of *f(n)*. The final complex result is 12+j0, -1.5+j0.866, -1.5-j0.866. For most applications, we are interested in the complex numbers’ magnitudes, or absolute values: 12, 1.732, 1,732.

**I see this could get tedious.
**The DFT is computationally intensive and can be time-consuming even for a computer. Consequently, many Fast Fourier Transform (FFT) algorithms have been developed to speed execution.

**By the way, how do we extract frequency information from the result?
**Each equation in Figure 1 represents a “bin” that can correspond to frequency, but the DFT itself doesn’t add any useful context—it doesn’t ask for input timing information, nor does it generate any explicit information about frequency. FFTs that you’ll find on high-end oscilloscopes handle all the housekeeping for you — you just display your time-domain signal, push the FFT button, and the scope automatically generates the appropriate amplitude vs. frequency scale.

**What do I need to run FFTs on my laptop?
**You can always write a program that executes the DFT equation or an FFT algorithm yourself, but your best bet is engineering software such as MATLAB or LabVIEW. In addition, Microsoft Excel has a limited ability run FFTs — not elegantly, but in a way that helps answer your question about how to get frequency data from the output.

**Can we use Excel to verify our manual calculations from Figure 1?
**We cannot. Excel uses a version of the FFT that requires that

*N*be a power of 2. You can, however, find online DFT calculators that can do that — click here, for example.

**How do I set up a realistic example?

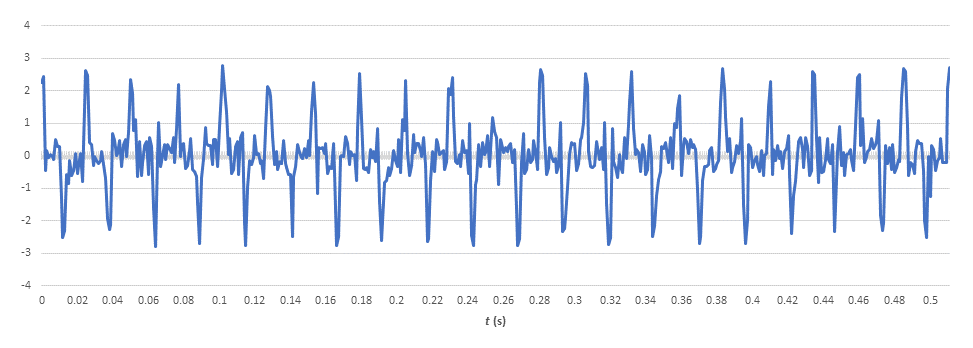

**I’ll demonstrate by setting up a FFT calculation for the time-domain waveform in

**Figure 2**, which includes 512 samples spanning times

*t*ranging from 0 msec to 511 msec.

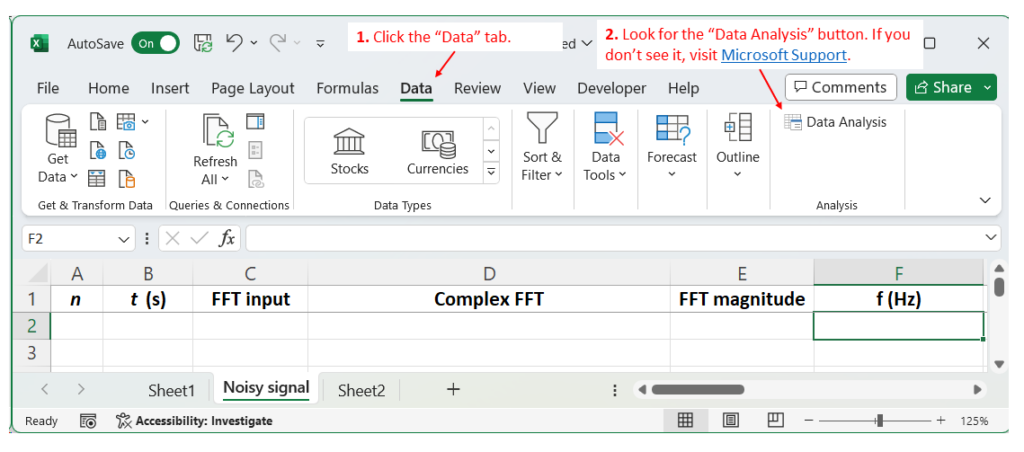

First, we set up a spreadsheet, as shown in Figure 3, with the six-column headings as shown.

**It looks like column F has the frequency information I’ve been asking about, right?
**Right. We’ll go through the details of filling out the spreadsheet — especially column F — in part 2. You can take two simple steps now to make sure you can run FFTs on your own version of Excel. Click the “Data” tab and look for the “Data Analysis” button. If you don’t see it, visit Microsoft Support here to learn how to load the data-analysis tools.

Meanwhile, these videos highlight some oscilloscopes’ FFT capabilities:

- Fast Fourier Transforms with an Oscilloscope (Keysight Technologies).
- Basics of using FFT on a Tektronix TDS2000 oscilloscope (Tektronix)
- HDO Using Spectrum Analyzer Mode (Teledyne LeCroy)
